Precision stamping die

Focus on the design and manufacture of high - precision and high - efficiency stamping dies.

Undertake the design and production of mold, including the design and production of single - stroke type and progressive - feed type. We are good at manufacturing parts with strict dimensional tolerance requirements for automobiles, industrial machinery, home appliances, OA equipment, etc.

We have a complete range of presses from 20 tons to 400 tons, and can handle all materials such as stainless steel, iron, and aluminum. In addition, by leveraging the technical knowledge accumulated from processing a variety of products to date, as well as the latest equipment and technologies, we achieve high - quality production.

Quality Assurance

Inspections are carried out using 3D measuring machines and image measuring machines. Besides measuring dimensions and flatness through in - process inspection /final inspection, quality assurance is also achieved through abrasive discs.

Moreover, through one - stop services from trial production to pre - mass production and mass production start - up, high - level quality management, production management, and maintenance management can be realized.

Especially during mass production, stable quality and a flexible supply system can be established by regularly managing and maintaining the molds.

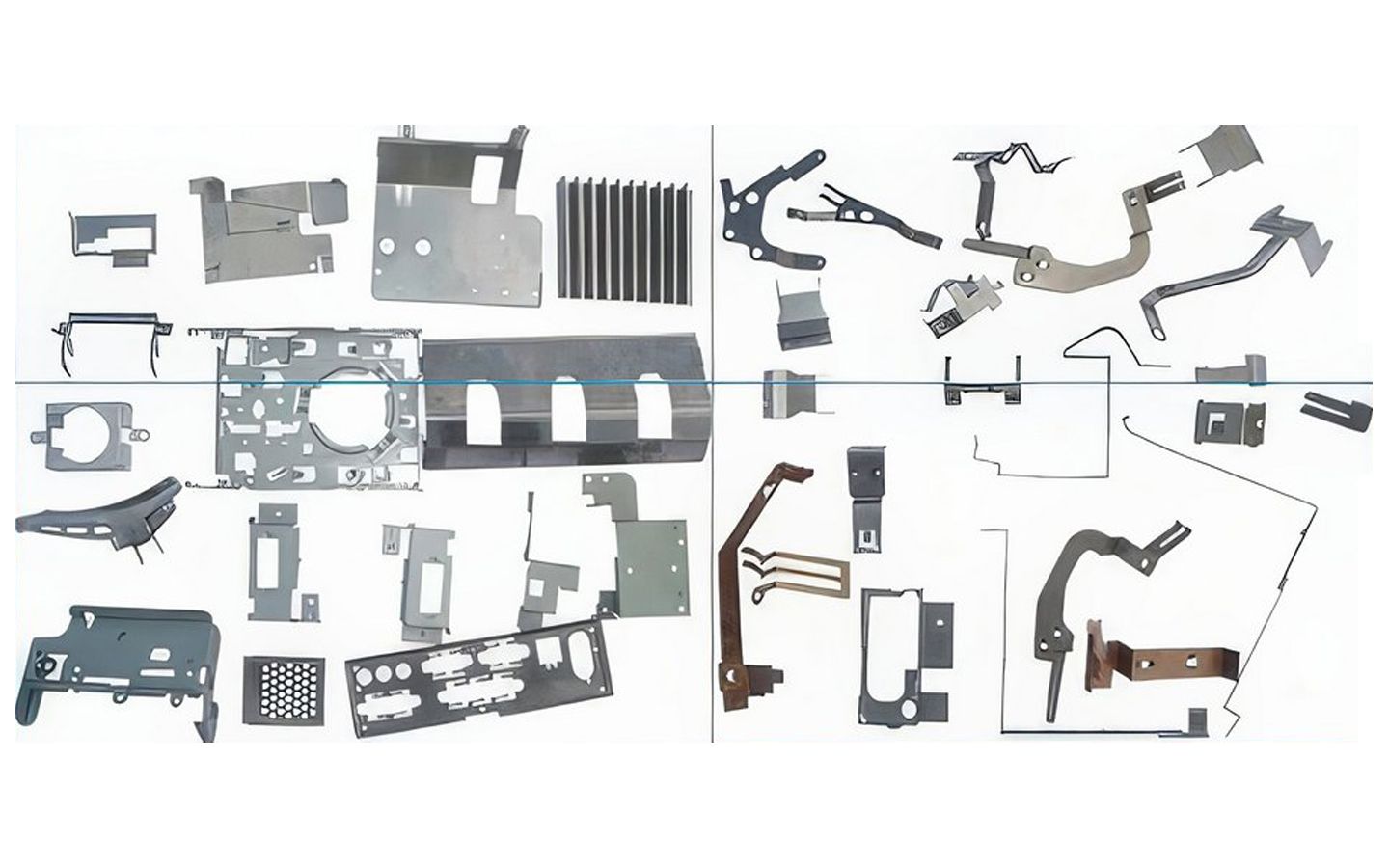

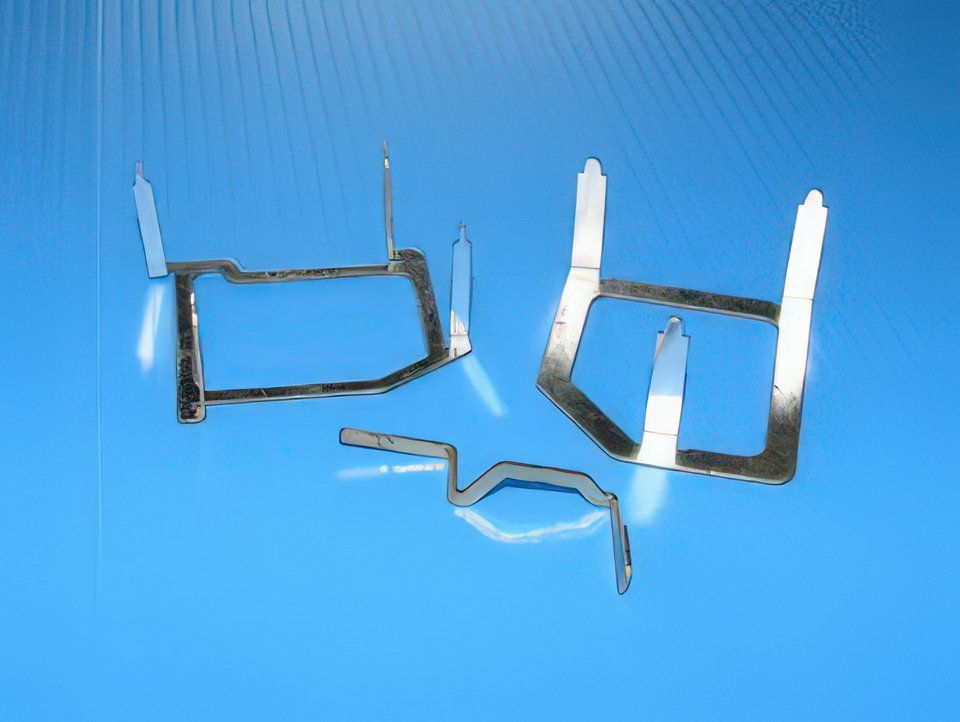

Product display

Plate thickness: 2mm; Material: aluminum

Enlarge

厚度：1.2mm  材质：SPC270C

拉伸形状

Enlarge

厚度：2mm 材质：SPC

拉伸形状

Enlarge

厚度：0.8mm材质：SCGA270C-050

光圈形状

Enlarge

板厚：1.5mm  材质：SUS304

Enlarge

板厚：0.64mm  材质：C2600

Enlarge

Rich experience and
technical accumulation

We have rich experience and technical accumulation in the field of stamping dies, especially with significant advantages in the following aspects:
Progressive dies: Suitable for continuous production, improving efficiency and consistency.
Single - stroke dies: High precision, suitable for the forming of complex parts.
Drawing dies: Used to manufacture drawn parts of various depths.
Bending dies: Ensure precise angle and dimension control.
Our stamping dies are widely used in fields such as automotive parts, home appliance parts, medical devices, digital and office equipment, meeting customers' strict requirements for high - precision and high - quality products.

Technical Features

  • Use advanced CAD/CAE/CAM technologies for design and manufacturing.
  • Precision processing equipment ensures that the die accuracy reaches ±0.01mm.
  • A strict quality control system ensures that each set of dies meets customer requirements.
  • Rapidly respond to customer needs and shorten the die development cycle.

Series products

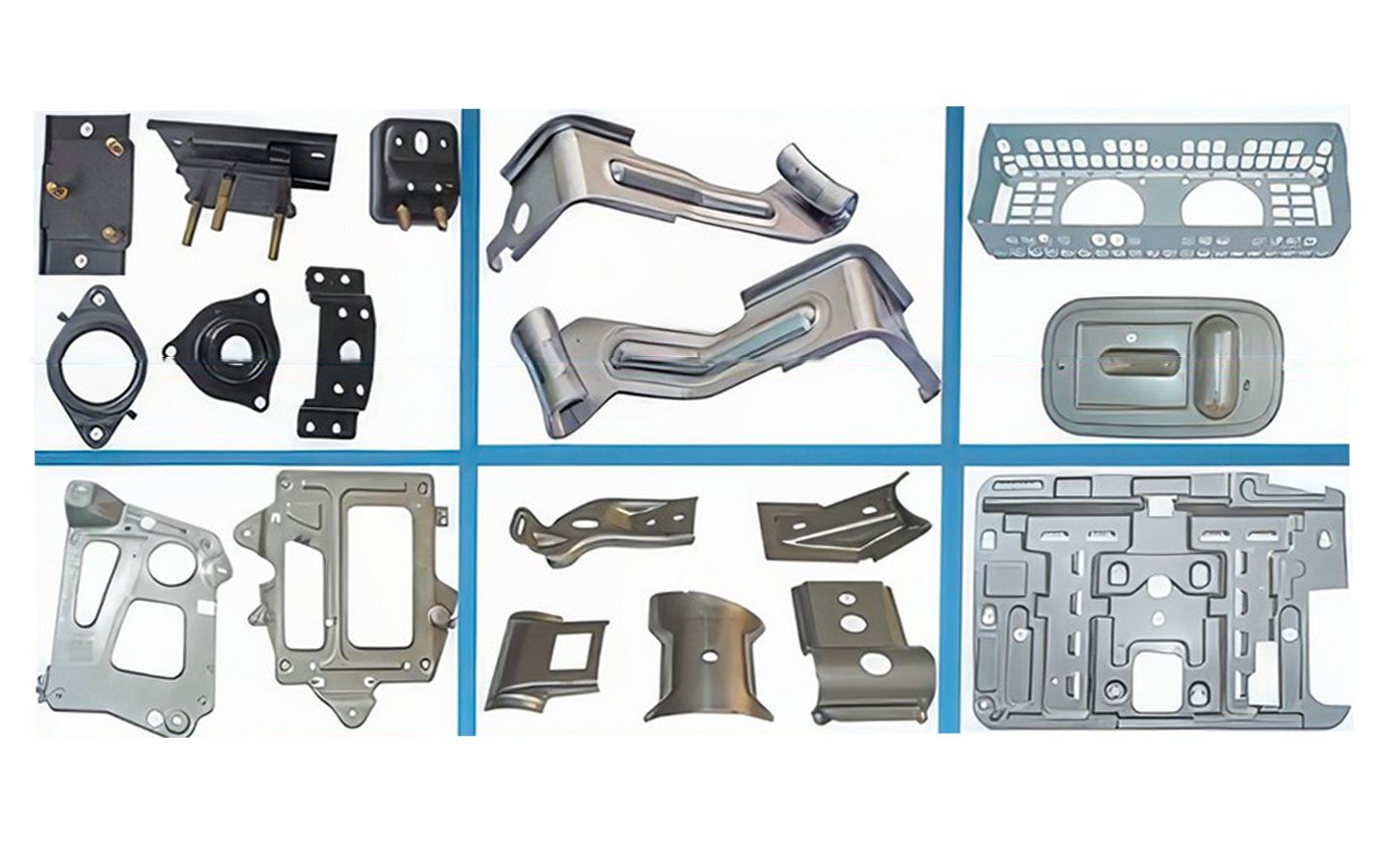

Automotive series

Electronics and medical series

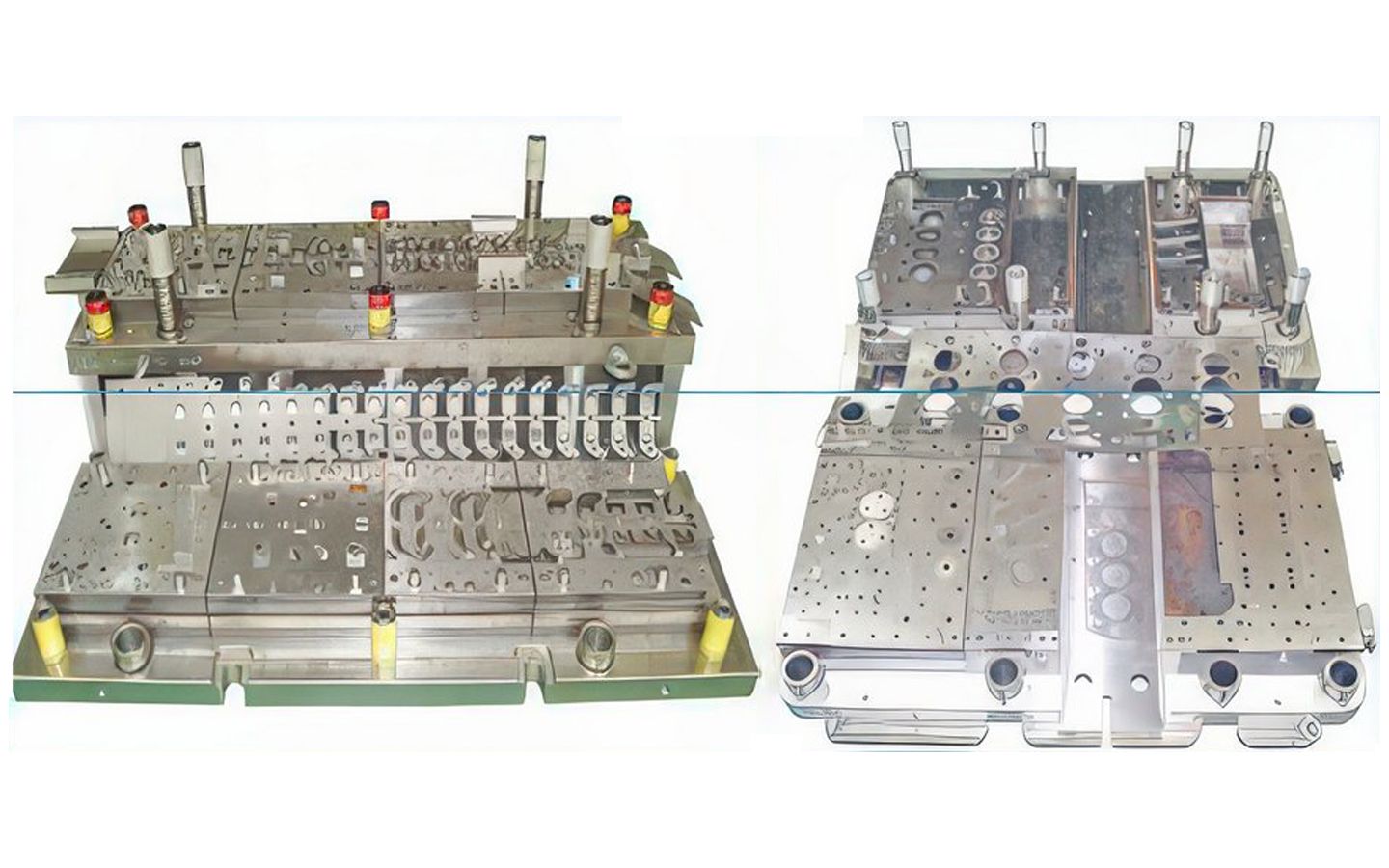

Mold display

    Technical parameters

    项目参数范围说明
    模具尺寸范围
    50t-1000t

    适用于不同吨位的冲压设备

    加工精度
    ±0.01mm

    满足高精度产品要求

    表面粗糙度
    Ra0.8-Ra3.2

    根据产品要求定制

    材料适用性
    不锈钢、碳钢、铝合金等

    涵盖常用冲压材料

    开发周期
    15-45天

    根据复杂程度确定

    Application areas

    Automotive industry

    Precision manufacturing of automotive parts, including exterior parts and functional parts.

    Home appliance industry

    Precision molding of the outer shells and internal components of household appliances.

    Medical devices

    High - precision components for medical equipment, meeting strict hygiene standards.

    Digital products

    Precision components for consumer electronic products such as smartphones and tablets.

    Manufacturing process

    Demand analysis

    Thoroughly understand customer needs and formulate technical solutions.

    Design and development

    Use CAD/CAE software for mold design and simulation analysis.

    Precision machining

    Adopt advanced CNC equipment for precision machining.

    Assembly and debugging

    Professional technicians conduct mold assembly and trial - mold debugging.

    Quality inspection

    Strict quality control and product inspection

    Delivery service

    Deliver on time and provide comprehensive after - sales service.

    A strict quality control system

    We have established a complete quality management system. Stringent quality control is carried out at every stage, from raw material procurement to finished product delivery:

    • Raw material quality inspection
    • Quality monitoring during the processing
    • Full inspection and sampling inspection of finished products
    • Quality traceability system
    • Customer satisfaction survey

    By strictly implementing quality standards, we ensure that every set of molds meets or exceeds customer expectations.

    Are you ready to start your project?

    Our expert team is ready to provide you with customized mold solutions at any time.
